WELDING CAMERA

  • Weld Camera System saves resources and time by verifying the quality of automated welds in real time.
  • View and record the torch, puddle, and seam of the weld in Full HD.
  • A variety of optical filters block bright arc light to allow an operator to see the torch tip and the weld pool during the welding process.
  • This unique system provides the opportunity to perform live weld analysis and improve quality control.
  • Wide Dynamic Range processing technology allows the system to see clear detailed images in the high-contrast weld environment.
  • E-CAM

  • S-CAM

  • W-CAM

  • F-CAM

Welding Method & Process

Method Process
GTAW Welding Education
FCAW Welding R&D
GMAW Orbital Welding
SAW Overlay Cladding
PLASMA Robot Welding
LASER Seam Welding

WELDING IMAGE

  • Micro TIG 30A

  • 180A TIG

  • 200A TIG

  • 200A TIG Two Wire

  • 250A TIG Pipe Inside Cladding

  • 250A TIG Inside Overlay

  • GMAW 240A

  • 550A MAG

Our products are of the same color as the worker's eyes, and more of an image than the worker directly observes
on the welding surface

WELDING APPLICATIONS

  • ORBITAL WELDING

  • ORBITAL WELDING

  • ROBOT WELDING

  • NARROW GAP WELDING

  • POSITIONER WELDING

  • ROTATOR WELDING

  • CLADDING WELDING

  • OVERLAY WELDING

  • LONGI SEAM WELDING

  • CIRCLE SEAM WELDING

  • INSIDE SEAM WELDING

  • PLASMA WELDING

Features

  • Compact Size
  • Super bright lighting
  • High resolution color CCD camera
  • Super WDR
  • Auto Weld Filter
  • Variety of lens options for different picture magnifications and focus ranges
  • Saves resources and time
  • Weld Camera System saves resources and time by verifying the quality of automated welds in real time.
  • View and record the torch, puddle, and seam of the weld in Full HD.
  • A variety of optical filters block bright arc light to allow an operator to see the torch tip and the weld pool during the welding process.
  • This unique system provides the opportunity to perform live weld analysis and improve quality control.
  • Wide Dynamic Range processing technology allows the system to see clear detailed images in the high-contrast weld environment.

Camera Specifications

Sensor Type Sony CCD Image Sensor
System NTSC
Video Output BNC
WDR Support
S/N Ratio >50dB (AGC OFF)
Min. Illumination B/W:0.001Lux ; Color: 0.1Lux
Camera Mount 1/4 inch Screw
Lens Mount C-Mount
Lens Manual (35mm)
Power DC12V
Current 90mA(DC12V)
Operating Temperature -10C~50C
Status LED Support
Weight (g) 510

Mechanical Specifications

Width (mm) 45
Height (mm) 75
Depth (mm) 70 (Without Lens)
Weight (g) 560

Camera Specifications

Focal Length (mm) 35
Iris Range F1.6 ~ F22
Operation Manual
Focusing Range (m)
From Front Of The Lens)
∞ ~ 0.25
Back Focal Distance(mm) 15.03
Mount C
Filter Thread (mm) M25.5 X 0.5

Mechanical Specifications

Diameter (ø) 29.5
Depth (mm) 29.5 (at ∞)
Weight (g) 45

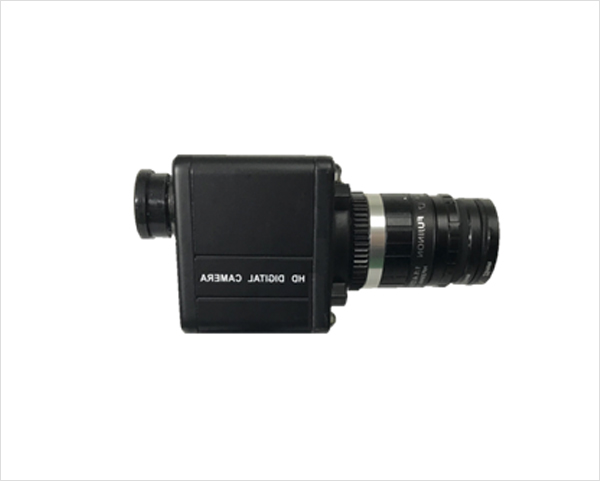

Features

  • Compact Size
  • Super bright lighting
  • High resolution color CCD camera
  • Super WDR
  • Auto Weld Filter
  • Variety of lens options for different picture magnifications and focus ranges
  • Saves resources and time
  • Weld Camera System saves resources and time by verifying the quality of automated welds in real time.
  • View and record the torch, puddle, and seam of the weld in Full HD.
  • A variety of optical filters block bright arc light to allow an operator to see the torch tip and the weld pool during the welding process.
  • This unique system provides the opportunity to perform live weld analysis and improve quality control.
  • Wide Dynamic Range processing technology allows the system to see clear detailed images in the high-contrast weld environment.

Camera Specifications

Sensor Type Sony CCD Image Sensor
System NTSC
Video Output BNC
WDR Support
S/N Ratio >50dB (AGC OFF)
Min. Illumination B/W:0.001Lux ; Color: 0.1Lux
Camera Mount C-Mount
Lens Mount C-Mount
Lens Manual (35mm)
Power DC12V
Current 90mA(DC12V)
Operating Temperature -10C~50C
Status LED Support
Weight (g) 510

Mechanical Specifications

Width (mm) 50
Height (mm) 50
Depth (mm) 52 (Without Lens)
Weight (g) 510

Camera Specifications

Focal Length (mm) 35
Iris Range F1.6 ~ F22
Operation Manual
Focusing Range (m)
From Front Of The Lens)
∞ ~ 0.25
Back Focal Distance(mm) 15.03
Mount C
Filter Thread (mm) M25.5 X 0.5

Mechanical Specifications

Diameter (ø) 29.5
Depth (mm) 29.5 (at ∞)
Weight (g) 45

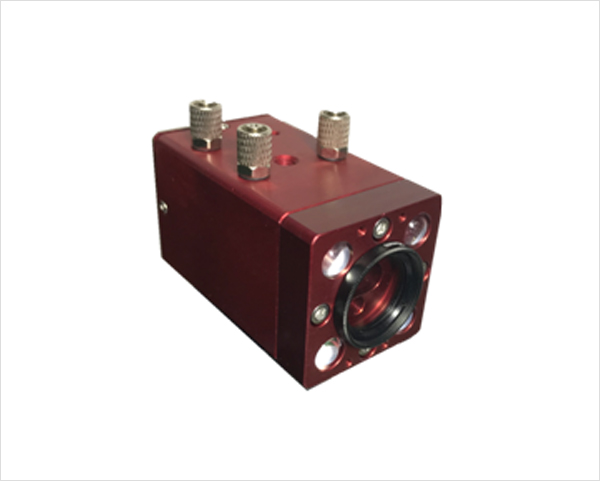

Features

  • Compact Size
  • Super bright lighting
  • High resolution color CCD camera
  • Super WDR
  • Auto Weld Filter

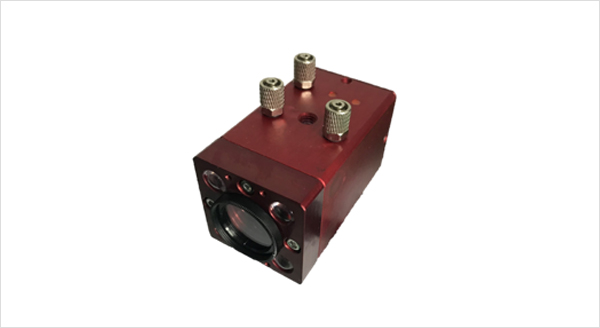

  • Cooling Chamber (Water / Air)
  • Saves resources and time
  • Weld Camera System saves resources and time by verifying the quality of automated welds in real time.
  • View and record the torch, puddle, and seam of the weld in Full HD.
  • A variety of optical filters block bright arc light to allow an operator to see the torch tip and the weld pool during the welding process.
  • This unique system provides the opportunity to perform live weld analysis and improve quality control.
  • Wide Dynamic Range processing technology allows the system to see clear detailed images in the high-contrast weld environment.

Camera Specifications

Sensor Type Sony CCD Image Sensor
System NTSC
Video Output BNC
WDR Support
S/N Ratio >50dB (AGC OFF)
Min. Illumination B/W:0.001Lux ; Color: 0.1Lux
Camera Mount 1/4 inch Screw
Camera Mount 1/4 inch Screw
Lens Fixed 25mm
Power DC12V
Current 90mA(DC12V)
Operating Temperature -10C~350C(with Cooling)
Status LED Support
Weight (g) 680

Mechanical Specifications

Width (mm) 42
Height (mm) 42
Depth (mm) 75
Weight (g) 720

Lens Specifications

Focal Length (mm) Max. 25
Iris Range F2.4 ~ F22
Operation Manual
Format 1/2 inch
Optical Glass
Mount M12 Fixed
Filter Thread (mm) 16

Mechanical Specifications

Diameter (ø) 14
Depth (mm) 20.4
Weight (g) 5

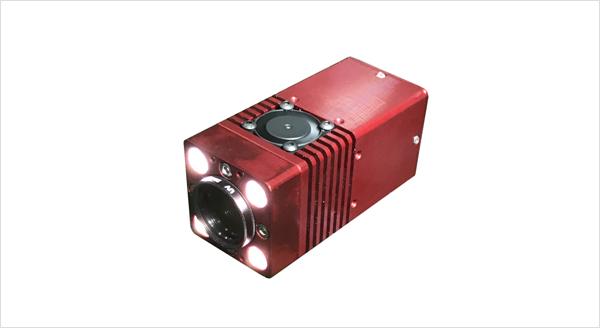

Features

  • Compact Size
  • Super bright lighting
  • High resolution color CCD camera
  • Super WDR
  • Auto Weld Filter

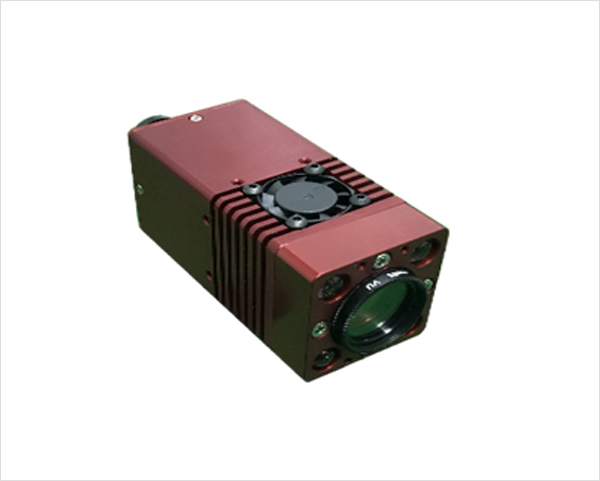

  • Air Fan Cooling
  • Saves resources and time
  • Weld Camera System saves resources and time by verifying the quality of automated welds in real time.
  • View and record the torch, puddle, and seam of the weld in Full HD.
  • A variety of optical filters block bright arc light to allow an operator to see the torch tip and the weld pool during the welding process.
  • This unique system provides the opportunity to perform live weld analysis and improve quality control.
  • Wide Dynamic Range processing technology allows the system to see clear detailed images in the high-contrast weld environment.

Camera Specifications

Sensor Type Sony CCD Image Sensor
System NTSC
Video Output BNC
WDR Support
S/N Ratio >50dB (AGC OFF)
Min. Illumination B/W:0.001Lux ; Color: 0.1Lux
Camera Mount 1/4 inch Screw
Lens Fixed 25mm
Power DC12V
Current 90mA(DC12V)
Operating Temperature -10C~80C(with Cooling)
Status LED Support
Weight (g) 720

Mechanical Specifications

Width (mm) 42
Height (mm) 42
Depth (mm) 90
Weight (g) 740

Lens Specifications

Focal Length (mm) Max. 25
Iris Range F2.4 ~ F22
Operation Manual
Format 1/2 inch
Optical Glass
Mount M12 Fixed
Filter Thread (mm) 16

Mechanical Specifications

Diameter (ø) 14
Depth (mm) 20.4
Weight (g) 5
