PRODUCTS
Accessories
> PRODUCTS > AccessoriesAccessories
- A-JIN Well Techs offers a comprehensive line of accessories including camera mounts, cables, monitors, lights and more.
- We make it easy for you to order a turnkey system or individual components to complement or upgrade your existing equipment.

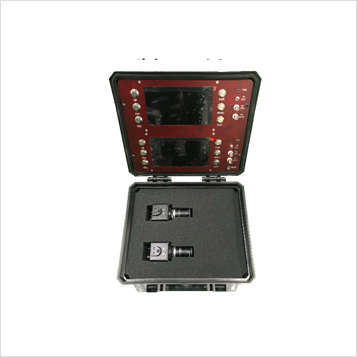

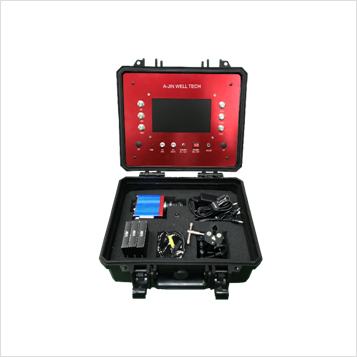

MONITORING CASE
Weld Monitoring offers the tools required for process development, production monitoring to support your quality system requirements.
Specifications
| Monitor | 7”~10” LCD FHD IPS (Single or Dual) |
|---|---|
| Interface | IN/OUT BNC |
| Power | DC 12V 2.0A |

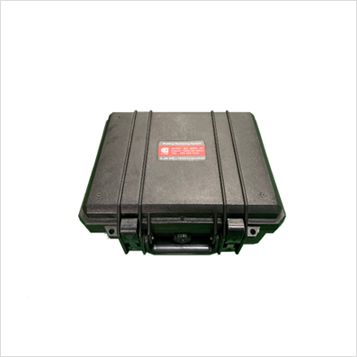

TOOL CASE
Tool case cover with embedded type O sealing ring grooves when the case is closed to prevent moisture or dust entering
Specifications
| External dimensions | 330*310*148MM |
|---|---|
| Internal dimensions | 310*248*130MM |

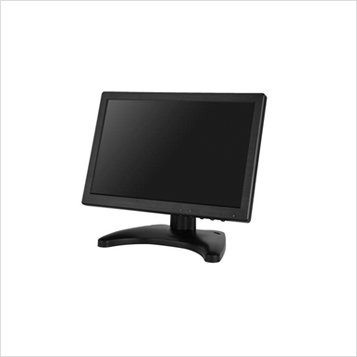

MONITORS
We offer a range of monitors and video signal converters for welding cameras that display directly to a monitor.
Specifications
| Panel Type | 10inch and more, IPS HD screen |
|---|---|
| Resolution | Standard 1920x1200 |
| Power | DC 12V 2.0A |
| Size/Weight | 246x167x35mm/0.58kg (10inch) |

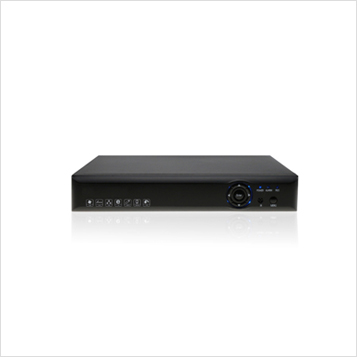

WELDING DVR
Specifications
| Interface CH | 4/8/9/16 | Storage & Backup | HDD(SATA), network |
|---|---|---|---|
| Video Input | BNC | Power Supply | DC 12V 3A |
| Video Output | VGA, HDMI | ||
| Welding Detection | Screen can be set to 192 detection areas | ||
| Record & Playback | Manual>Alarm>Detection>Timing | ||

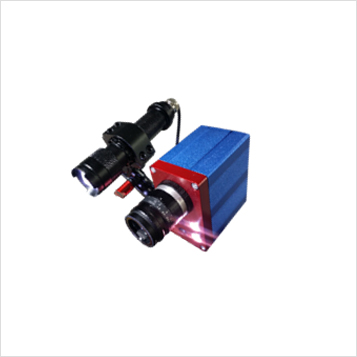

LIGHTS
Additional lighting may be used to ensure a clear image for positioning purposes. Note that lighting is integrated into some welding cameras.
Specifications
| Size | 95L x 25ø (mm) |
|---|---|
| Lumen | 2000LM |
| Waterproof | IPX 7 |

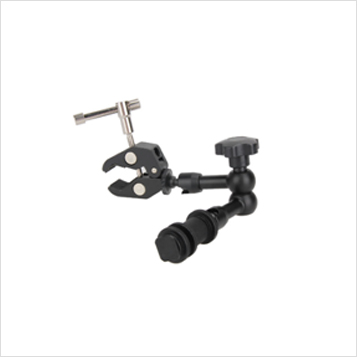

MOUNTS
Our range of isolating camera and monitor mounts includes free arm, fix arm and manual torch mounts. Supplies 1/4'' screw adapters to fit camera and light holder and other accessories.
Specifications
| Length | 5'' and more |
|---|---|
| Thread | 1/4" and 3/8" |

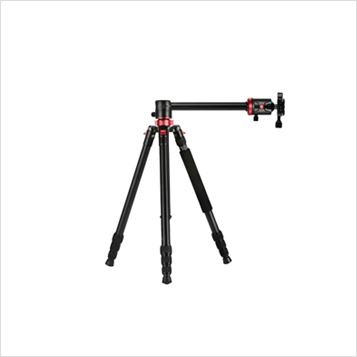

TRIPOD
It can use this to record welding videos and it has made editing so much easier now that don't have to flip rotate and manipulate the original film.
Specifications
| Head Type | Ball Head |
|---|---|
| Features | Foldable ,Transverse center column, monopod |
| Head Material | Die-casting metal |
| Applicable Model | All Welding Camera |
